Dry Sump Tanks

Why GRP4 Fabrications Dry Sump Tanks.

To get the best reliability out of your competition Engine it is best to have it fitted with a Dry Sump kit.

In a Dry Sump kit, the oil is stored outside the Engine in an Alloy Dry Sump Tank rather than in the Sump pan.

GRP4 Fabrications manufacture a wide range of Alloy Dry Sump tanks, from basic models to our Top of the range 6R4 type Split Dry Sump Tanks which gives maximum De-aeration and guaranteed non-surge even under the most demanding conditions with our special anti-surge bottom pick up pipe.

GRP4 Fabrications Dry sump tanks have been tried and tested by Competitors and Engine builders alike.

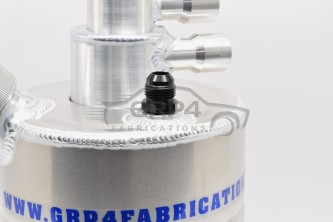

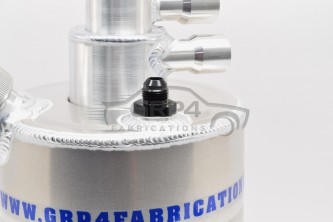

Our Tanks have an option where an extra breather can easily be screwed in when an extra engine breather is require, especially for BDA Engines, as fitted in a lot of Mk1 and MK2 Escorts.

Inlet and Outlet fitting on all our Tanks are 5/8" BSP threads.

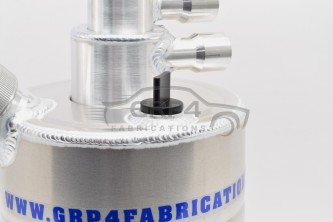

Also these Tanks can be supplied with an option of a Dip Stick for easy checking of Oil level in the Tank.

Other options include our Split Tanks which makes cleaning and oil changes easier and a lot more effective.

Also we have the option of Black anodizing on our Tanks, which has proved a much nicer than Powder coating.

We ship worldwide.



Brand: GRP4 FABRICATIONS Model: GRP4281
Castrol 10W 60.Choose   5Ltr  / 4Ltr / 1Ltr Castrol Edge Sport 10W-60 is a hard-wearing product for use in a wide range of sports performance engines. This product has been tested in race engines to deliver protection in hot and hard-running scenarios. Castrol Edge Sport ..
€20.91
Ex Tax:€17.00
Dry Sump Tank
7 day lead time.
Brand: GRP4 FABRICATIONS Model: GRP4290
Dry Sump Tank.Please select Finish*Plain alloy *Black anodised 2 Gallon dry sump tank,Fitted with Twin Baffles.With 5/8" bsp  feed and return fittings1/2" bsp breather.  420 mm High including Cap.200 mm Diameter.Base Plate 215 mm x 215mm...
€246.00
Ex Tax:€200.00
Brand: GRP4 FABRICATIONS Model: GRP4291
Dry Sump Tank. 2 Gallon dry sump tank, with twin return pipes and breather.Twin baffled. Comes with mounting holes to fit GRP5180.  With 5/8" bsp  feed and return fittings.1/2" bsp breather. 420 mm High including Cap.200 mm Diameter.Base Plate 215 mm x 215mm...
€307.50
Ex Tax:€250.00
Brand: GRP4 FABRICATIONS Model: GRP4312
The ultimate in dry sump Tanks,Designed to give the maximum in De-aeration of the oil and special anti surge outlet to provide the ultimate in protection for your Engine.Inlet and Outlet fittings are 5/8" bsp thread.The breather outlet is also 5/8" bsp, which we have adaptors for Dash 12, Dash 10 bu..
€385.85
Ex Tax:€313.70
Brand: GRP4 FABRICATIONS Model: GRP4312B
The ultimate in dry sump Tanks,Designed to give the maximum in De-aeration of the oil and special anti surge outlet to provide the ultimate in protection for your Engine.Inlet and Outlet fittings are 5/8" bsp thread.The breather outlet is also 5/8" bsp, which we have adaptors for Dash 12, Dash 10 bu..
€534.68
Ex Tax:€434.70

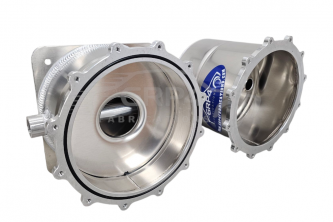

6R4 Type Split Oil Tank (split) 6R4 Type Split Oil Tank (split)
8 to 10 day lead time.
Brand: GRP4 FABRICATIONS Model: GRP4316
Introducing our top-tier Dry Sump Tank This easy-to-clean Dry Sump Tank features a billet-machined flange, secured with 12 x M6 bolts. This unique design ensures quick and hassle-free cleaning and oil changing.Our Dry Sump Tank is specially engineered for maximum oil de-aeration. It includes an..
€516.60
Ex Tax:€420.00
6r4 Type Split Oil Tank (split) Black Anodized 6r4 Type Split Oil Tank (split) Black Anodized
14 day lead time
Brand: GRP4 FABRICATIONS Model: GRP4316B
Introducing our top-tier Dry Sump Tank This easy-to-clean Dry Sump Tank features a billet-machined flange, secured with 12 x M6 bolts. This unique design ensures quick and hassle-free cleaning and oil changing.Our Dry Sump Tank is specially engineered for maximum oil de-aeration. It includes an..
€665.43
Ex Tax:€541.00

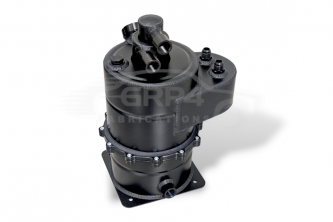

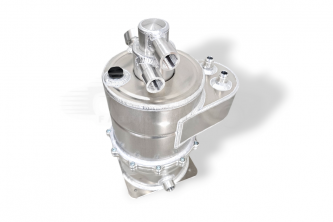

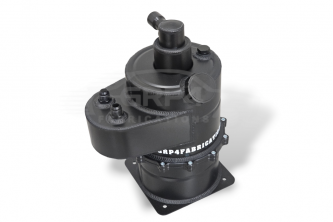

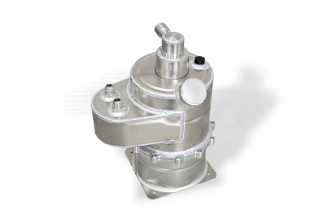

6r4 Type Dry Sump Tank With Integrated Catch Tank 6r4 Type Dry Sump Tank With Integrated Catch Tank
7 day lead time.
Brand: GRP4 FABRICATIONS Model: GRP4314
The ultimate in dry sump Tanks,Designed to give the maximum in De-aeration of the oil and special anti surge outlet to provide the ultimate in protection for your Engine.Inlet and Outlet fittings are 5/8" bsp thread.Fitted with integrate Catch Tank with dash 10 male fittings.The breather outlet is a..
€452.03
Ex Tax:€367.50
Brand: GRP4 FABRICATIONS Model: GRP4320B
Black Powder Coated Dry Sump Tank Box forInside dimensions: 420 mm x 235 mm x 235mm.Commonly used in cars with no rear firewalls like Toyota Corolla AE86, Starlets, Sunbeam Peugeot 205 etc...
€148.83
Ex Tax:€121.00
Brand: GRP4 FABRICATIONS Model: GRP4319B
Black Tank Box suitable for 6R4 Dry Sump Tank.Inside Dimensions: 41 cm / 27 cm (H) x 28 cm (D) x 25 cm (W)...
€178.60
Ex Tax:€145.20
Showing 1 to 10 of 10 (1 Pages)
