6R4 Type Dry Sump Tank Split With Integrated Catch Tank

Loyalty Points

For every Euro, you spend you receive 1 point and each point is worth 1 cent so 500 points is worth €5. Use these points on your next order or let them accumulate towards future orders.
6R4 Type Dry Sump Tank Split With Integrated Catch Tank
6R4 Type Dry Sump Tank Split With Integrated Catch Tank
6R4 Type Dry Sump Tank Split With Integrated Catch Tank
6R4 Type Dry Sump Tank Split With Integrated Catch Tank
6R4 Type Dry Sump Tank Split With Integrated Catch Tank
6R4 Type Dry Sump Tank Split With Integrated Catch Tank
6R4 Type Dry Sump Tank Split With Integrated Catch Tank
6R4 Type Dry Sump Tank Split With Integrated Catch Tank
6R4 Type Dry Sump Tank Split With Integrated Catch Tank
6R4 Type Dry Sump Tank Split With Integrated Catch Tank
6R4 Type Dry Sump Tank Split With Integrated Catch Tank
6R4 Type Dry Sump Tank Split With Integrated Catch Tank
6R4 Type Dry Sump Tank Split With Integrated Catch Tank
6R4 Type Dry Sump Tank Split With Integrated Catch Tank
6R4 Type Dry Sump Tank Split With Integrated Catch Tank
  • Stock: In Stock
  • Model: GRP4317
  • Weight: 3.22kg
  • JAN: M1
GRP4 FABRICATIONS GRP4 FABRICATIONS
Based on 0 reviews. - Write a review
€793.35
Ex Tax: €645.00
Price in reward points: 64500

Available Options

Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

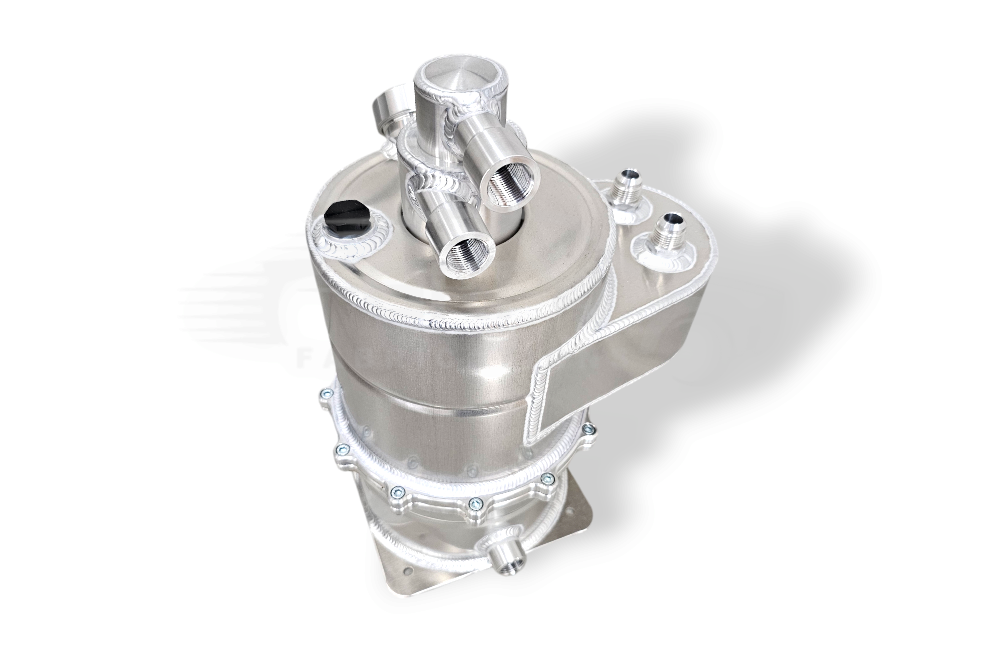

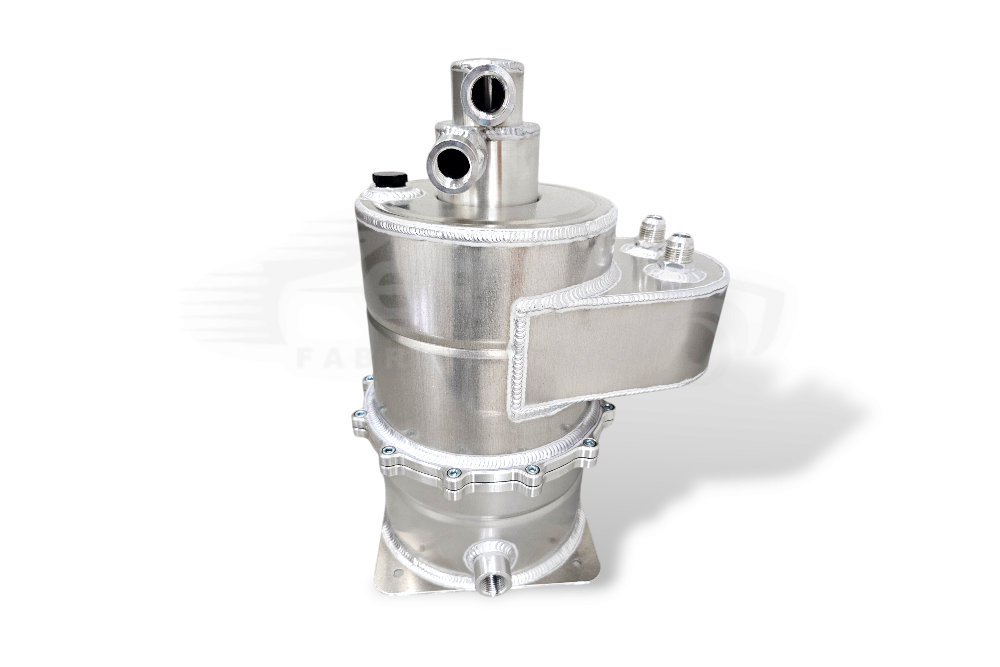

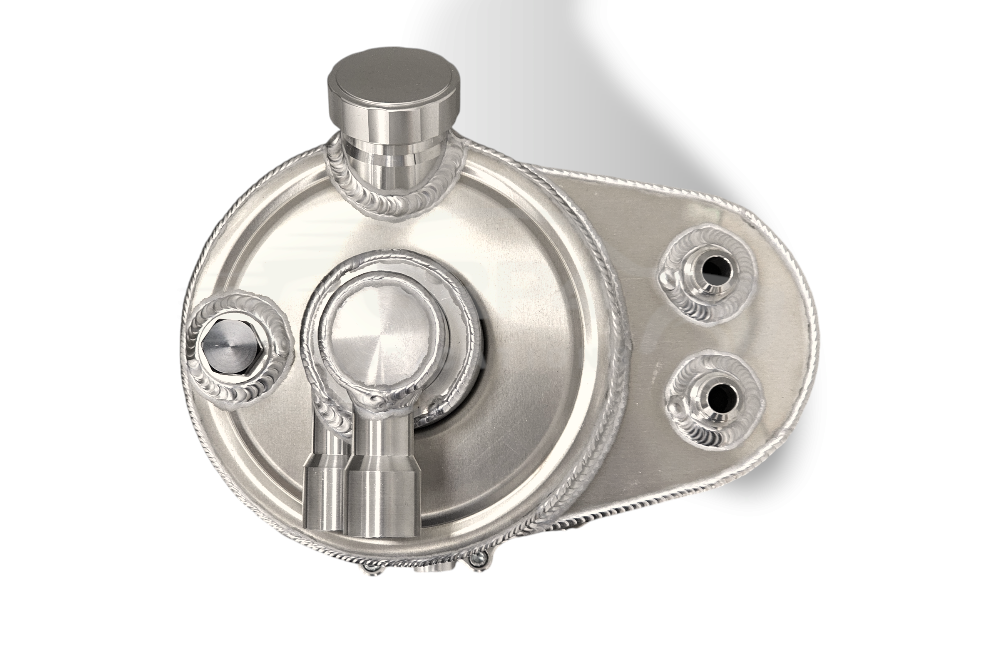

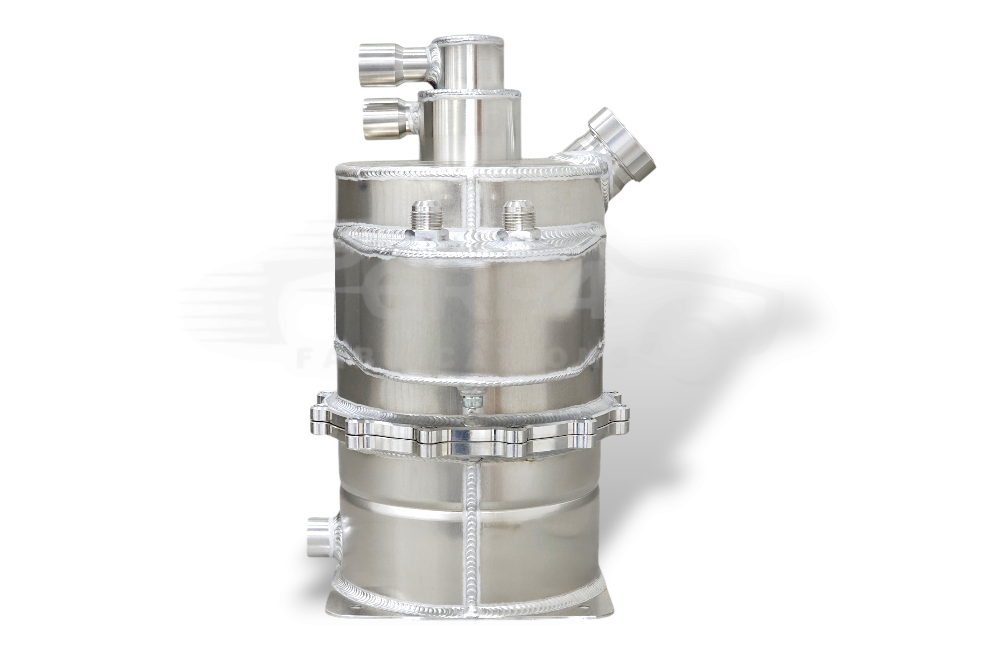

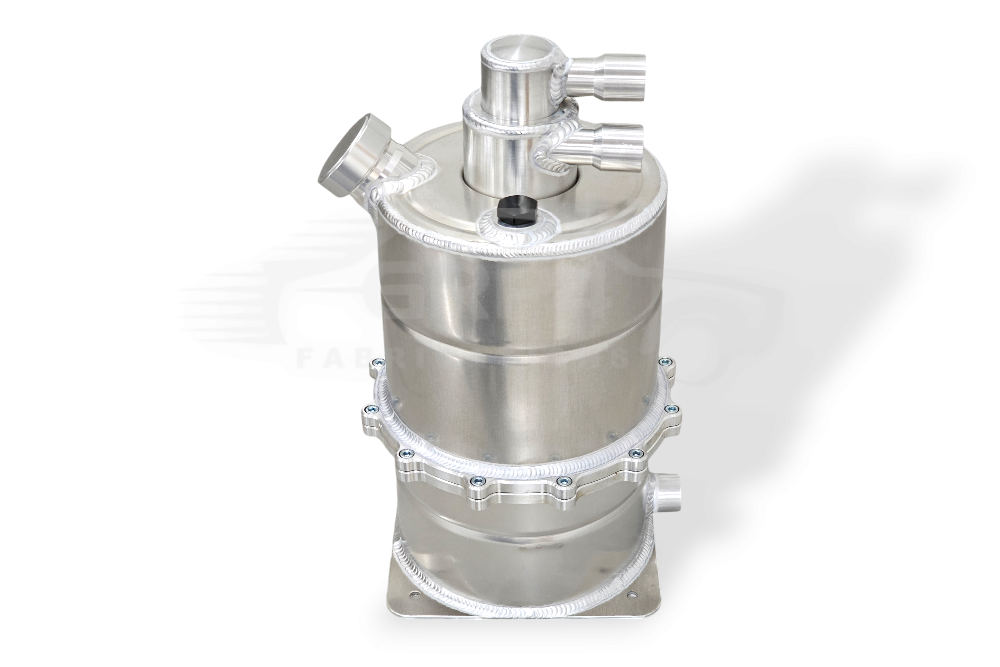

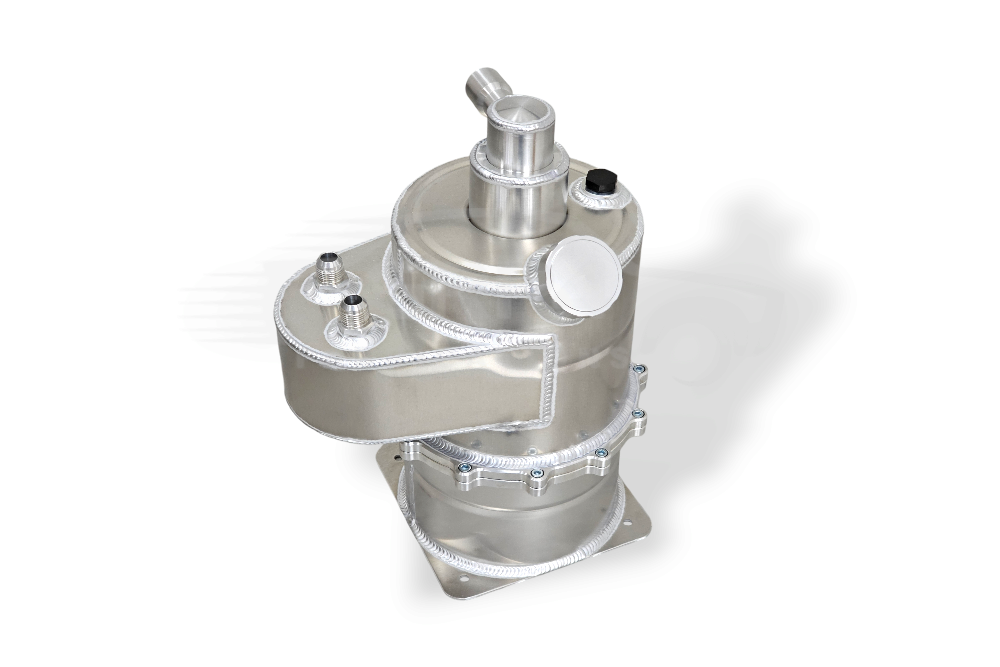

Introducing our top-tier Dry Sump Tank with integrated catch tank.

This easy-to-clean Dry Sump Tank features a billet-machined flange, secured with 12 x M6 bolts. This unique design ensures quick and hassle-free cleaning and oil changing.

Our Dry Sump Tank is specially engineered for maximum oil de-aeration. It includes an anti-surge outlet to provide ultimate engine protection.

The tank has inlet and outlet fittings with 5/8" BSP threads.

The tank also features a 5/8" BSP breather outlet. We offer adaptors for Dash 12 and Dash 10, but we recommend maintaining the largest possible size. This is because a larger hose reduces air speed, which in turn minimizes oil siphoning.

The Catch Tank is fitted with 2 off Dash 10 male Fittings.



Customize your tank with our fitting options:

  1. Blanking Cap Only – This standard fitting comes with every tank.
  2. Dip Stick Fitted – Replace the standard blanking cap with our dipstick.
  3. -8 threaded fitting – For additional breathing in engines such as BDA (no dipstick or blanking cap included).
  4. -10 threaded fitting – For extra breather requirement (no dipstick or blanking cap included).


Tank Specifications:

Height: 415mm.

Diameter: 200mm.

Diameter with Catch Tank 295mm.

Base Plate: 215mm x 215mm.

Maximum capacity: Approximately 7 Litres (up to the internal baffle)


Choose our Dry Sump Tank for optimal engine performance and protection

Tags: Millington dry sump tank , anti surge oil tank , 6R4 Oil tank. Split , easy clean oil tank ,
